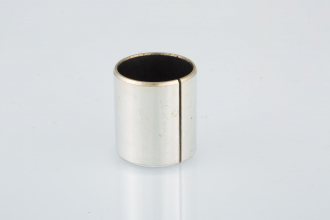

Série SF1
| Ref | d | D- | L- | F1 | F2 | Devis |
| SF1 0305 | 3.00 | 4.50 | 5.00 | 0.00 | 0.00 |
|
| SF1 0303 | 3.00 | 4.50 | 3.00 | 0.00 | 0.00 |
|
| SF1 0408 | 4.00 | 5.50 | 8.00 | 0.00 | 0.00 |
|
| SF1 0404 | 4.00 | 5.50 | 4.00 | 0.00 | 0.00 |
|
| SF1 0510 | 5.00 | 7.00 | 10.00 | 0.50 | 0.30 |
|
| SF1 0505 | 5.00 | 7.00 | 5.00 | 0.50 | 0.30 |
|
| SF1 0610 | 6.00 | 8.00 | 10.00 | 0.50 | 0.30 |
|
| SF1 0606 | 6.00 | 8.00 | 6.00 | 0.50 | 0.30 |
|
| SF1 0710 | 7.00 | 9.00 | 10.00 | 0.50 | 0.30 |
|
| SF1 0707 | 7.00 | 9.00 | 7.00 | 0.50 | 0.30 |
|
| SF1 0812 | 8.00 | 10.00 | 12.00 | 0.50 | 0.30 |
|
| SF1 0808 | 8.00 | 10.00 | 8.00 | 0.50 | 0.30 |
|
| SF1 1012 | 10.00 | 12.00 | 12.00 | 0.50 | 0.30 |
|
| SF1 1008 | 10.00 | 12.00 | 8.00 | 0.50 | 0.30 |
|
| SF1 1015 | 10.00 | 12.00 | 15.00 | 0.50 | 0.30 |
|
| SF1 1010 | 10.00 | 12.00 | 10.00 | 0.50 | 0.30 |
|
| SF1 1215 | 12.00 | 14.00 | 15.00 | 0.50 | 0.30 |
|
| SF1 1210 | 12.00 | 14.00 | 10.00 | 0.50 | 0.30 |
|
| SF1 1220 | 12.00 | 14.00 | 20.00 | 0.50 | 0.30 |
|
| SF1 1212 | 12.00 | 14.00 | 12.00 | 0.50 | 0.30 |
|
| SF1 1310 | 13.00 | 15.00 | 10.00 | 0.50 | 0.30 |
|
| SF1 1315 | 13.00 | 15.00 | 15.00 | 0.50 | 0.30 |
|
| SF1 1425 | 14.00 | 16.00 | 25.00 | 0.50 | 0.30 |
|
| SF1 1412 | 14.00 | 16.00 | 12.00 | 0.50 | 0.30 |
|
| SF1 1420 | 14.00 | 16.00 | 20.00 | 0.50 | 0.30 |
|
| SF1 1515 | 15.00 | 17.00 | 15.00 | 0.50 | 0.30 |
|
| SF1 1525 | 15.00 | 17.00 | 25.00 | 0.50 | 0.30 |
|
| SF1 1512 | 15.00 | 17.00 | 12.00 | 0.50 | 0.30 |
|
| SF1 1610 | 16.00 | 18.00 | 10.00 | 0.50 | 0.30 |
|
| SF1 1625 | 16.00 | 18.00 | 25.00 | 0.50 | 0.30 |
|
| SF1 1612 | 16.00 | 18.00 | 12.00 | 0.50 | 0.30 |
|
| SF1 1615 | 16.00 | 18.00 | 15.00 | 0.50 | 0.30 |
|
| SF1 1720 | 17.00 | 19.00 | 20.00 | 0.50 | 0.30 |
|
| SF1 1715 | 17.00 | 19.00 | 15.00 | 0.50 | 0.30 |
|
| SF1 1830 | 18.00 | 20.00 | 30.00 | 0.50 | 0.30 |
|
| SF1 1820 | 18.00 | 20.00 | 20.00 | 0.50 | 0.30 |
|
| SF1 1812 | 18.00 | 20.00 | 12.00 | 0.50 | 0.30 |
|
| SF1 1825 | 18.00 | 20.00 | 25.00 | 0.50 | 0.30 |
|
| SF1 1815 | 18.00 | 20.00 | 15.00 | 0.50 | 0.30 |
|
| SF1 1810 | 18.00 | 20.00 | 10.00 | 0.50 | 0.30 |
|
| SF1 2025 | 20.00 | 23.00 | 25.00 | 0.80 | 0.40 |
|
| SF1 2030 | 20.00 | 23.00 | 30.00 | 0.80 | 0.40 |
|
| SF1 2015 | 20.00 | 23.00 | 15.00 | 0.80 | 0.40 |
|
| SF1 2230 | 22.00 | 25.00 | 30.00 | 0.80 | 0.40 |
|
| SF1 2215 | 22.00 | 25.00 | 15.00 | 0.80 | 0.40 |
|
| SF1 2225 | 22.00 | 25.00 | 25.00 | 0.80 | 0.40 |
|
| SF1 2430 | 24.00 | 27.00 | 30.00 | 0.80 | 0.40 |
|
| SF1 2415 | 24.00 | 27.00 | 15.00 | 0.80 | 0.40 |
|
| SF1 2425 | 24.00 | 27.00 | 25.00 | 0.80 | 0.40 |
|
| SF1 2525 | 25.00 | 28.00 | 25.00 | 0.80 | 0.40 |
|
| SF1 2540 | 25.00 | 28.00 | 40.00 | 0.80 | 0.40 |
|
| SF1 2515 | 25.00 | 28.00 | 15.00 | 0.80 | 0.40 |
|
| SF1 2630 | 26.00 | 30.00 | 30.00 | 1.00 | 0.50 |
|
| SF1 2615 | 26.00 | 30.00 | 15.00 | 1.00 | 0.50 |
|
| SF1 2640 | 26.00 | 30.00 | 40.00 | 1.00 | 0.50 |
|
| SF1 2620 | 26.00 | 30.00 | 20.00 | 1.00 | 0.50 |
|
| SF1 2830 | 28.00 | 32.00 | 30.00 | 1.00 | 0.50 |
|
| SF1 2815 | 28.00 | 32.00 | 15.00 | 1.00 | 0.50 |
|
| SF1 2840 | 28.00 | 32.00 | 40.00 | 1.00 | 0.50 |
|
| SF1 2820 | 28.00 | 32.00 | 20.00 | 1.00 | 0.50 |
|
| SF1 3040 | 30.00 | 34.00 | 40.00 | 1.00 | 0.50 |
|
| SF1 3015 | 30.00 | 34.00 | 15.00 | 1.00 | 0.50 |
|
| SF1 3025 | 30.00 | 34.00 | 25.00 | 1.00 | 0.50 |
|
| SF1 3230 | 32.00 | 36.00 | 30.00 | 1.00 | 0.50 |
|
| SF1 3240 | 32.00 | 36.00 | 40.00 | 1.00 | 0.50 |
|
| SF1 3220 | 32.00 | 36.00 | 20.00 | 1.00 | 0.50 |
|
| SF1 3530 | 35.00 | 39.00 | 30.00 | 1.00 | 0.50 |
|
| SF1 3550 | 35.00 | 39.00 | 50.00 | 1.00 | 0.50 |
|
| SF1 3520 | 35.00 | 39.00 | 20.00 | 1.00 | 0.50 |
|
| SF1 3850 | 38.00 | 42.00 | 50.00 | 1.00 | 0.50 |
|
| SF1 3820 | 38.00 | 42.00 | 20.00 | 1.00 | 0.50 |
|
| SF1 3840 | 38.00 | 42.00 | 40.00 | 1.00 | 0.50 |
|
| SF1 4040 | 40.00 | 44.00 | 40.00 | 1.00 | 0.50 |
|
| SF1 4050 | 40.00 | 44.00 | 50.00 | 1.00 | 0.50 |
|
| SF1 4020 | 40.00 | 44.00 | 20.00 | 1.00 | 0.50 |
|
| SF1 4250 | 42.00 | 46.00 | 50.00 | 1.00 | 0.50 |
|
| SF1 4220 | 42.00 | 46.00 | 20.00 | 1.00 | 0.50 |
|
| SF1 4240 | 42.00 | 46.00 | 40.00 | 1.00 | 0.50 |
|
| SF1 4430 | 44.00 | 48.00 | 30.00 | 1.00 | 0.50 |
|
| SF1 4450 | 44.00 | 48.00 | 50.00 | 1.00 | 0.50 |
|
| SF1 4420 | 44.00 | 48.00 | 20.00 | 1.00 | 0.50 |
|
| SF1 4520 | 45.00 | 50.00 | 20.00 | 1.20 | 0.60 |
|
| SF1 4530 | 45.00 | 50.00 | 30.00 | 1.20 | 0.60 |
|
| SF1 4550 | 45.00 | 50.00 | 50.00 | 1.20 | 0.60 |
|
| SF1 5060 | 50.00 | 55.00 | 60.00 | 1.20 | 0.60 |
|
| SF1 5020 | 50.00 | 55.00 | 20.00 | 1.20 | 0.60 |
|
| SF1 5040 | 50.00 | 55.00 | 40.00 | 1.20 | 0.60 |
|
| SF1 5550 | 55.00 | 60.00 | 50.00 | 1.20 | 0.60 |
|
| SF1 5560 | 55.00 | 60.00 | 60.00 | 1.20 | 0.60 |
|
| SF1 5530 | 55.00 | 60.00 | 30.00 | 1.20 | 0.60 |
|
| SF1 6030 | 60.00 | 65.00 | 30.00 | 1.20 | 0.60 |
|
| SF1 6070 | 60.00 | 65.00 | 70.00 | 1.20 | 0.60 |
|
| SF1 6540 | 65.00 | 70.00 | 40.00 | 1.20 | 0.60 |
|
| SF1 6570 | 65.00 | 70.00 | 70.00 | 1.20 | 0.60 |
|
| SF1 7040 | 70.00 | 75.00 | 40.00 | 1.20 | 0.60 |
|
| SF1 7070 | 70.00 | 75.00 | 70.00 | 1.20 | 0.60 |
|
| SF1 7550 | 75.00 | 80.00 | 50.00 | 1.20 | 0.60 |
|
| SF1 7580 | 75.00 | 80.00 | 80.00 | 1.20 | 0.60 |
|
| SF1 80100 | 80.00 | 85.00 | 100.00 | 1.20 | 0.60 |
|
| SF1 8050 | 80.00 | 85.00 | 50.00 | 1.20 | 0.60 |
|
| SF1 85100 | 85.00 | 90.00 | 100.00 | 1.20 | 0.60 |
|
| SF1 8550 | 85.00 | 90.00 | 50.00 | 1.20 | 0.60 |
|
| SF1 90100 | 90.00 | 95.00 | 100.00 | 1.20 | 0.60 |
|
| SF1 9050 | 90.00 | 95.00 | 50.00 | 1.20 | 0.60 |
|
| SF1 9580 | 95.00 | 100.00 | 80.00 | 1.20 | 0.60 |
|
| SF1 95120 | 95.00 | 100.00 | 120.00 | 1.20 | 0.60 |
|
| SF1 9550 | 95.00 | 100.00 | 60.00 | 1.20 | 0.60 |
|
| SF1 100120 | 100.00 | 105.00 | 120.00 | 1.20 | 0.60 |
|
| SF1 10060 | 100.00 | 105.00 | 60.00 | 1.20 | 0.60 |
|
| SF1 100100 | 100.00 | 105.00 | 100.00 | 1.20 | 0.60 |
|
| SF1 105120 | 105.00 | 110.00 | 120.00 | 1.20 | 0.60 |
|
| SF1 10560 | 105.00 | 110.00 | 60.00 | 1.20 | 0.60 |
|
| SF1 110120 | 110.00 | 115.00 | 120.00 | 1.20 | 0.60 |
|
| SF1 11060 | 110.00 | 115.00 | 60.00 | 1.20 | 0.60 |
|
| SF1 11560 | 115.00 | 120.00 | 60.00 | 1.20 | 0.60 |
|
| SF1 115100 | 115.00 | 120.00 | 100.00 | 1.20 | 0.60 |
|
| SF1 12060 | 120.00 | 125.00 | 60.00 | 1.20 | 0.60 |
|
| SF1 125100 | 125.00 | 130.00 | 100.00 | 1.20 | 0.60 |
|
| SF1 12560 | 125.00 | 130.00 | 60.00 | 1.20 | 0.60 |
|
| SF1 13060 | 130.00 | 135.00 | 60.00 | 1.20 | 0.60 |
|
| SF1 13560 | 135.00 | 140.00 | 60.00 | 1.20 | 0.60 |
|
| SF1 135100 | 135.00 | 140.00 | 100.00 | 1.20 | 0.60 |
|
| SF1 14060 | 140.00 | 145.00 | 60.00 | 1.20 | 0.60 |
|
| SF1 140100 | 140.00 | 145.00 | 100.00 | 1.20 | 0.60 |
|
| SF1 14560 | 145.00 | 150.00 | 60.00 | 1.20 | 0.60 |
|
| SF1 145100 | 145.00 | 150.00 | 100.00 | 1.20 | 0.60 |
|
| SF1 15060 | 150.00 | 155.00 | 60.00 | 1.20 | 0.60 |
|
| SF1 150100 | 150.00 | 155.00 | 100.00 | 1.20 | 0.60 |
|
| SF1 16080 | 160.00 | 165.00 | 80.00 | 1.20 | 0.60 |
|
| SF1 160100 | 160.00 | 165.00 | 100.00 | 1.20 | 0.60 |
|
| SF1 17080 | 170.00 | 175.00 | 80.00 | 1.20 | 0.60 |
|
| SF1 170100 | 170.00 | 175.00 | 100.00 | 1.20 | 0.60 |
|
| SF1 180100 | 180.00 | 185.00 | 100.00 | 1.20 | 0.60 |
|
| SF1 18080 | 180.00 | 185.00 | 80.00 | 1.20 | 0.60 |
|
| SF1 190100 | 190.00 | 195.00 | 100.00 | 1.20 | 0.60 |
|
| SF1 19080 | 190.00 | 195.00 | 80.00 | 1.20 | 0.60 |
|
| SF1 200100 | 200.00 | 205.00 | 100.00 | 1.20 | 0.60 |
|
| SF1 210100 | 210.00 | 215.00 | 100.00 | 1.20 | 0.60 |
|
| SF1 250100 | 250.00 | 255.00 | 100.00 | 1.20 | 0.60 |
|
| SF1 280100 | 280.00 | 285.00 | 100.00 | 1.20 | 0.60 |
|
| SF1 300100 | 300.00 | 305.00 | 100.00 | 1.20 | 0.60 |
|
| SF1 12080 | 120.00 | 125.00 | 80.00 | 1.20 | 0.60 |
|
| SF1 1208 | 12.00 | 14.00 | 8.00 | 0.50 | 0.30 |
|
| SF1 1410 | 14.00 | 16.00 | 10.00 | 0.50 | 0.30 |
|
| SF1 1415 | 14.00 | 16.00 | 15.00 | 0.50 | 0.30 |
|
| SF1 1510 | 15.00 | 17.00 | 10.00 | 0.50 | 0.30 |
|
| SF1 1620 | 16.00 | 18.00 | 20.00 | 0.50 | 0.30 |
|
| SF1 2020 | 20.00 | 23.00 | 20.00 | 0.80 | 0.40 |
|
| SF1 2220 | 22.00 | 25.00 | 20.00 | 0.80 | 0.40 |
|
| SF1 2520 | 25.00 | 28.00 | 20.00 | 0.80 | 0.40 |
|
| SF1 2530 | 25.00 | 28.00 | 30.00 | 0.80 | 0.40 |
|
| SF1 2550 | 25.00 | 28.00 | 50.00 | 0.80 | 0.40 |
|
| SF1 1520 | 15.00 | 17.00 | 20.00 | 0.50 | 0.30 |
|
| SF1 3020 | 30.00 | 34.00 | 20.00 | 1.00 | 0.50 |
|
| SF1 3030 | 30.00 | 34.00 | 30.00 | 1.00 | 0.50 |
|
| SF1 4030 | 40.00 | 44.00 | 30.00 | 1.00 | 0.50 |
|
| SF1 5050 | 50.00 | 55.00 | 50.00 | 1.20 | 0.60 |
|
| SF1 5540 | 55.00 | 60.00 | 40.00 | 1.20 | 0.60 |
|
| SF1 5525 | 55.00 | 60.00 | 25.00 | 1.20 | 0.60 |
|
| SF1 4545 | 45.00 | 50.00 | 45.00 | 1.20 | 0.60 |
|
| SF1 6040 | 60.00 | 65.00 | 40.00 | 1.20 | 0.60 |
|
| SF1 6060 | 60.00 | 65.00 | 60.00 | 1.20 | 0.60 |
|
| SF1 6530 | 65.00 | 70.00 | 30.00 | 1.20 | 0.60 |
|
| SF1 7050 | 70.00 | 75.00 | 50.00 | 1.20 | 0.60 |
|
| SF1 7540 | 75.00 | 80.00 | 40.00 | 1.20 | 0.60 |
|
| SF1 8040 | 80.00 | 85.00 | 40.00 | 1.20 | 0.60 |
|
| SF1 8060 | 80.00 | 85.00 | 60.00 | 1.20 | 0.60 |
|
| SF1 8080 | 80.00 | 85.00 | 80.00 | 1.20 | 0.60 |
|
| SF1 9060 | 90.00 | 95.00 | 60.00 | 1.20 | 0.60 |
|
| SF1 3535 | 35.00 | 39.00 | 35.00 | 1.00 | 0.50 |
|
| SF1 3012 | 30.00 | 34.00 | 12.00 | 1.00 | 0.50 |
|
| SF1 3050 | 30.00 | 34.00 | 50.00 | 1.00 | 0.50 |
|
| SF1 3540 | 35.00 | 39.00 | 40.00 | 1.00 | 0.50 |
|
| SF1 5030 | 50.00 | 55.00 | 30.00 | 1.20 | 0.60 |
|
| SF1 5520 | 55.00 | 60.00 | 20.00 | 1.20 | 0.60 |
|
| SF1 6050 | 60.00 | 65.00 | 50.00 | 1.20 | 0.60 |
|
| SF1 6550 | 65.00 | 70.00 | 50.00 | 1.20 | 0.60 |
|
| SF1 7560 | 75.00 | 80.00 | 60.00 | 1.20 | 0.60 |
|
